Wholesale Price DLE40 Cc GAS Engine For RC Airplane Model Hot Sel -

Idle Speed : 1500RPM

private mold : Yes

MOQ : 2 pieces

Displacement : 2.45 cu in (40.0 cc)

Muffler Weight (x2) : 3.6oz (102g)

Bore (x2) : 1.26

Stroke (x2) : 0.98

Place of Origin : China, GuangdongChina

Engine Weight : 2.58lbs (1170g)

Overall Weight : 3.3lbs (1.5kg)

Material : PVC

Brand Name : DLE

compatible brand : DLE

RPM Range : 1 500-8 500

Price : $359-379 / piece

Compression Ratio : 10.5:1

Contact Now

Product Features
Muffler Weight (x2)	3.6oz (102g)
place of origin	Guangdong,China
Displacement	2.45 cu in (40.0 cc)
Compression Ratio	10.5:1
Engine Weight	2.58lbs (1170g)
brand name	DLE
Overall Weight	3.3lbs (1.5kg)
private mold	Yes
RPM Range	1 500-8 500
Idle Speed	1500RPM
Bore (x2)	1.26
Stroke (x2)	0.98
Performance	4.8 HP / 8 500RPM

Features

        Electronic ignition delvers smooth idle easy starting and powerful throttle transition spiral wire wrap eliminates interference Updated muffler design for increased noise reduction excellent aeration and power Sealed crankshaft ball bearings Optimized pumper carburetor with phenolic insert to insulate carburetor from engine heat Lightweight pistons for fast acceleration excellent compression and low vibration Composite backplate mount 87 octane gasoline 2-cycle oil mix ratio for this engine is 30 parts gas to one part oil and must be followed exactly for warranty consideration and optimum performance 4.8 - 6V NiMH/NiCd or 6.6V LiFe or 7.4V LiPo battery for ignition (separate receiver style pack can be used) (LiPo & LiFe requires voltage regulator) Propeller: 19x8 19x10 20x8 20x10 Field Equipment


Product Detail

          Displacement: 2.45 cu in (40.0 cc) Bore (x2): 1.26 (32mm) Stroke (x2): 0.98 (25mm)

          RPM Range: 1 500-8 500

          Performance: 4.8 HP @ 8 500RPM

          Idle Speed: 1500RPM

          Compression Ratio: 10.5:1 Overall

          Weight: 3.3lbs (1.5kg)

          Engine Weight: 2.58lbs (1170g)

          Muffler Weight (x2): 3.6oz (102g)

          Ignition Module Weight: 5.3oz (149g)

          Engine Mount Standoff Weight: 0.7oz (19g)

          Miscellaneous Item Weight: 2oz (56g)

          Width between Cylinder Heads: 7.1 (180mm)

          Distance between Mounting Hole Centers/Narrow Side: 2.1 (54mm)

          Distance between Mounting Hole Centers/Wide Side: 2.7 (70mm)

          Length/Backplate to Outer Edge of Prop Drive Hub: 6.3 (161mm)

          Distance from Crankshaft Center/Outer edge of Carb: 3.5 (90mm)

          Standoff Length: 0.98 (25mm)

          Spark Plug Gap: 0.018 - 0.020 (0.45mm - 0.51mm)

          Carburetor Settings; (carb is preset at factory and should require only small adjustments)

          Idle Adjustment Screw: Turn clockwise to increase idle speed conterclockwise to decrease idle speed Low

          Speed Needle: Turn needle to fully closed position then open 1.25 turns High

          Speed Needle: Turn needle to fully closed position then open 1.5 turns-tachometer is recommended when setting high speed needle to obtain maximum speed1

Item Packing

DLE-40 Gasoline Engine	*1
Electronic Ignition NGK CM6 Spark Plugs	*1
Electronic Ignition Mufflers four 0.98 (25mm) Standoffs	*1
Instruction Manual	*1

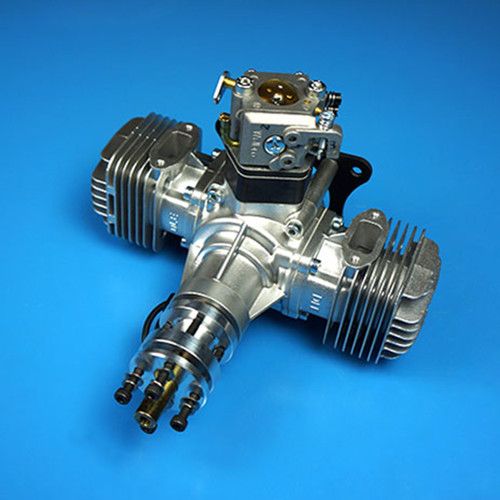

Detailed Images
